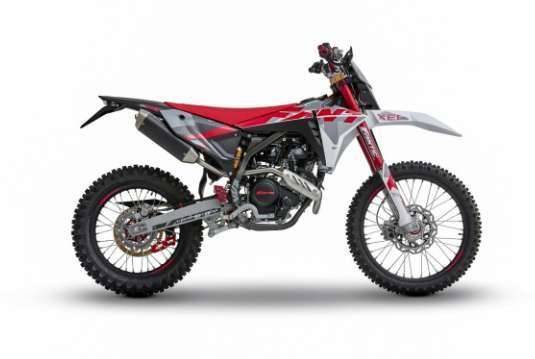

Fantic 125 XEF Competition Enduro



Engine Motori Minarelli: Single cylinder 4 strokes Euro5+, liquid cooled

Maximum power: 11 kW (15 PS) to 9.750 rpm

Maximum Torque: 11,8 Nm to 6.750 rpm

Displacement: 124,66 cc

Bore: 52 mm

Stroke: 58,7 mm

Distribution: SOHC 4-valve, Variable camshaft timing

Ignition: Electronic

Starter. Electric

Gears: 6

Clutch: Wet multidisc, back-torque limiter

Exhaust: Manifold and muffler by ARROW

Frame: Perimeter frame steel

Sub frame: Removable in steel

Swingarm: Aluminium, variable section and progressive link

Tires: 90/90x21 - 120/90x18

Wheels: spoked wheels, black anodized

Brakes: Disc "Wave" ø260mm - Disc "Wave" ø220mm

ABS: active on front & rear wheel (fully off mode available)

Triple clamps: Aluminum, CNC racing triple clamps

Front suspension: FANTIC FRS ø41mm USD, racing setup, forged aluminium fork bottoms

Rear suspension: FANTIC FRS 125 Piggyback - preload and hydraulic regulation

Handlebar: ø28 aluminum

Lights: Front & Rear full LED lights

Turning Lights: Led Front&Rear

Length: 2110mm

Seat height: 915mm

Wheelbase: 1420mm

Dry weight: 108 kg

Fuel tank: capacity 7,5l
