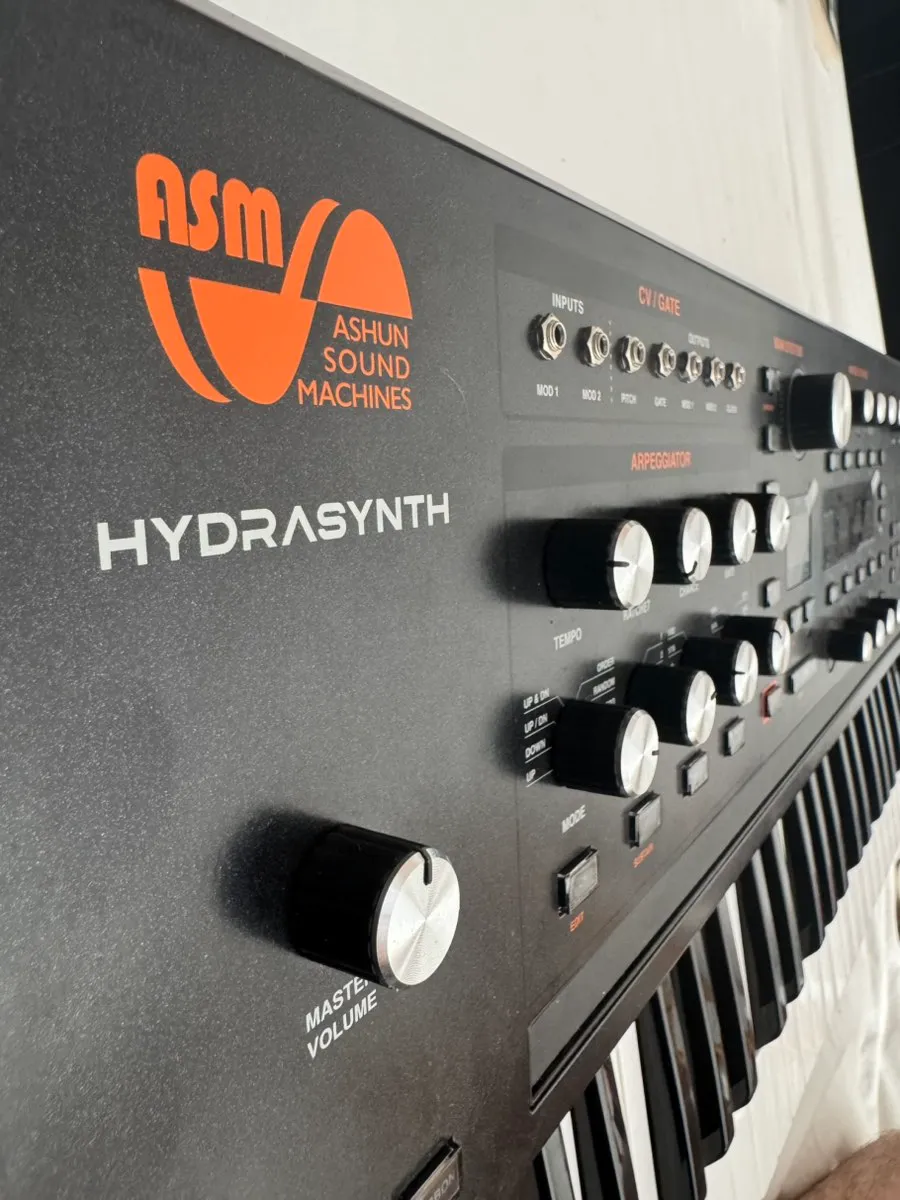

Verkaufe meinen ASM Hydrasynth Keyboard. Wer das Teil kennt, weiß: einer der flexibelsten digitalen Synths der letzten Jahre. 8-stimmig, Wavemorphing-Engine, polyphoner Aftertouch, Ribbon-Controller, Mod-Matrix ohne Ende. Sounddesign-Spielplatz und Performance-Maschine in einem.

Der Synth ist im perfekten Zustand, technisch wie optisch. Nichtraucherstudio, keine Macken, keine Kratzer. Läuft einwandfrei. Originalverpackung ist nicht mehr vorhanden.

Klanglich deckt er alles ab von glasklaren Pads über aggressive Bässe bis zu komplett zerlegten Texturen. Ideal für Producer, Live-Performer, Gearheads und alle, die lieber schrauben als Presets skippen. Wenn du auf komplexe Modulation, Aftertouch-Expression und moderne Digital-Power stehst, ist das dein Gerät.

Preis: €900 VB

Abholung bevorzugt, Versand unter umständen möglich bei Kostenübernahme. Antesten nach Absprache gerne.

Angaben laut Internetseite des Herstellers:

PHYSICAL SPECIFICATIONS

Metal chassis
•Steel top and bottom
•Aluminum side panels

Polytouch Keybed
•49 keys, semi-weighted
•Polyphonic aftertouch
•Selectable velocity / aftertouch curves

4-octave Ribbon Controller (67 cm, 26.4”)
•Pitch Bend mode
•Mod Only mode – use the ribbon as a modulation source
•Theremin mode - the ribbon triggers a note
Choose continuous pitch or one of 60 scales, including microtonal
Selectable range: 2, 4, or 6 octaves
•Ribbon can be CV source

Additional Hardware Controls
•Octave Up/Down buttons for instant transposition
•Chord mode button: stack up to 8 notes in a chord
•Pitch bend / modulation controls with adjustable depth

Patch Memory
•8 banks with 128 patches each: 1,024 total
•Sort patches by Patch number, Name, or Category
•Browse Favorites: Select 32 patches from any bank for immediate access

CV / Gate Inputs and Outputs
•Supports multiple CV / Gate standards
CV
-1v per octave 0-10V
-1v per octave +/-5V
-Hz to Volts 0-10V
-1.2V per octave
-Adjustable offset: +/-99 cents
-Adjustable reference note: C-1 to G9
Gate
-V-trig, S-trig
-3V, 5V, 10V
Mod In / Out range
-+/-5V, 0-10V, 0-5V, 0-1V
-Adjustable offset: +/-3V
Clock Out
-1PPS, 2PPQ, 24PPQ, 48 PPQ
-Clock Voltage: 3v, 5V, 10V
-Selectable clock division: Off, 1/2, 2, 4
-Adjustable offset: +/- 100ms

MIDI IN / OUT / THRU
•Voice overflow mode to expand polyphony with a second Hydrasynth

Expression pedal input
•Selectable curves and polarity

Sustain pedal input
•Polarity sensing
•Three modes of operation: Sustain, Sostenuto, and Modulation Only

DC input jack

USB port
•Supports USB MIDI In / Out

Audio outputs
•Stereo analog outputs (balanced)
•Two headphone connectors
6.35 mm (14 inch) and 3.5 mm
Shared volume control
Impedance: 16 – 75 Ohm

Dimensions
•80 x 35 x 10.3 cm (31.5 x 13.78 x 4.05 inches)

Weight
•10kg

SOUND PATCH SPECIFICATIONS

8 Voice Advanced Wavetable synthesis

Oscillators 1 and 2: Wavemorphing oscillators
•219 single-cycle waveforms
•User wavetables
8 user-selectable waves per oscillator to build custom wavetables
WaveScan parameter lets you morph through the wavetables
Every patch can have two unique wavetables
•Bit reduction: 11 settings from 2 to 16 bits, and Off
•+/- 3 octave tuning range
•Keytracking: 0-200%

Oscillator 3: fixed Wave oscillator
•219 single-cycle waveforms
•Bit reduction: 11 settings from 2 to 16 bits, and Off
•+/- 3 octave tuning range
•Keytracking: 0-200%

Dual Mutants per oscillator (Osc 1 and 2)
•FM: Linear FM
Selectable Modulator source:
-Internal Sine & Triangle waves, Oscillators 1-3, Ring Mod, Noise generator, Mutants 1-4, External Mod inputs 1 & 2
•WavStack: Generates 5 detuned waves from the input source, with adjustable detune amount
•Hard Sync (Osc Sync): gives that classic sync sweep sound
Selectable sync input source: Oscillators 1-3
Adjustable Hann window to shape the output
•Pulse Width Modulation (PW-Orig): Adjusts the pulse width of any waveform
•PW-Squeeze: Compresses the center section of the waveform, for a unique type of PWM
•PW-ASM: 8 adjustable Warp points can be applied to the waveform, for a unique form of FM synthesis
Warp points can be modulated individually through the Mod Matrix
•Harmonic Sweep: scans through the harmonics of the incoming waveform
•PhazDiff: creates a new sound by combining phase shifting and summing techniques
•Depth control for all Mutants
•FeedBack control for all Mutants (except WavStack): 0-150%
•Ratio control for Osc Sync, Harmonic, and all PWM Mutants: 0.250:1 - 64:1
Mutations occur up to 64 times in one waveform cycle, or as few as once in four cycles
•Dry/Wet mix to blend the input source with the Mutant output

Noise Generator
•White, Pink, Brown, Red, Blue, Violet, Grey noise sources

Ring Modulator
•Selectable input source:
Oscillators 1-3, Noise, Mutants 1-4, External Mod inputs 1 & 2
•Depth control

Sound source mixer
•Independent level control for Oscillators 1-3, Noise, and Ring Mod
•Panning for each source
•Filter routing mix
•Each source can be soloed
Solo status is saved with the patch

Two Filters
•Series or parallel routing
•Filter 1
12 & 24dB/octave modern ladder (compensated)
12 & 24dB/octave vintage ladder (uncompensated)
3-Ler LP, BP, HP
MS20 HP, LP
Low Pass Gate
STN LP, BP, HP
1 pole LP
8 pole LP
Vocal filter
Multiple vowel order options
-Formant parameter
•Filter 2 (SEM style)
Continuously Variable Low pass > Band pass > High pass
Continuously Variable Low pass > Notch > High pass

Patch-level parameters
•Poly, Mono, and Unison modes
•Two glide modes: Glide and Glissando
•60 scales available, including microtonal
New scales can be imported from third-party software
•VoiceMod: independent modulation levels available per voice, per patch
•MPE support
•NRPN / CC automation capability
•Randomize or initialize parameters, modules, or an entire patch

MODULATION SPECIFICATIONS

5x Low Frequency Oscillators
•10 static waves
Sine, Triangle, Saw up, Saw down, Square, Pulse 27%, Pulse 13%, S&H, Noise, Random
•Step Wave: up to 64 user-definable steps (similar to a step sequencer)
SemiLock for chromatic pitch sequencing
Can advance one step per trigger
•Clock sync
•Variable rate
BPM Sync Off: 0.02 - 150 Hz
BPM Sync On: 1/64T - 64' (16 bars), including dotted and triplet options
•Starting phase
•Start delay
•Fade in
•Master LFO output gain
•Trigger modes: Mono, Poly, Off (free run)
•One shot modes: Off, On, and Step
•Adjustable smoothing of waves and LFO steps
•LFO quantize: 8 levels

5x Envelope Generators
•6 stage DAHDSR envelopes
Delay, Attack, Hold, Decay, Sustain, Release
Slope curves for ADR stages
Variable from full exponential to full logarithmic
Use Tempo or Time option for setting the length of each stage
•BPM Sync option
•Looping of AHD stages
Loop 2-50 times or indefinitely
Envelopes can function as additional LFOs
•Envelope quantize: 8 levels
•Trigger modes: Reset, Retrigger, Legato (not available in Poly mode)
•Trigger Sources: up to 4 trigger sources available for each envelope

Matrix modulation
•32 slots for source-destination mod routings with amount
•35 sources, 191 destinations
•Modulation slots can be mod destinations and/or Macro destinations
•Per-voice Modulation sources: bipolar or unipolar

8x Macro knobs and buttons
•Each Macro knob allows positive and negative control of up to 8 destinations
•Macros can be modulation destinations

Arpeggiator
•Arp parameters can be modulation destinations
•Modes
Up, down, up/down, up & down, note order, random, chord, phrase
64 preset phrases
Adjustable length
Step offset +/- 32 steps
Tap Trigger option: advance arpeggiator with Tap Tempo button
•Octave
Range: 1-6 octaves
•Play order
Up, down, up/down, alt 1, alt 2
•Swing: Adjustable from 50-75%
•Gate time: 5-100%
•Ratchet: repeats notes
•Chance: sets how often the ratchet takes place

Bei Fragen einfach melden.

Ohne Garantie oder Rückgabe.
