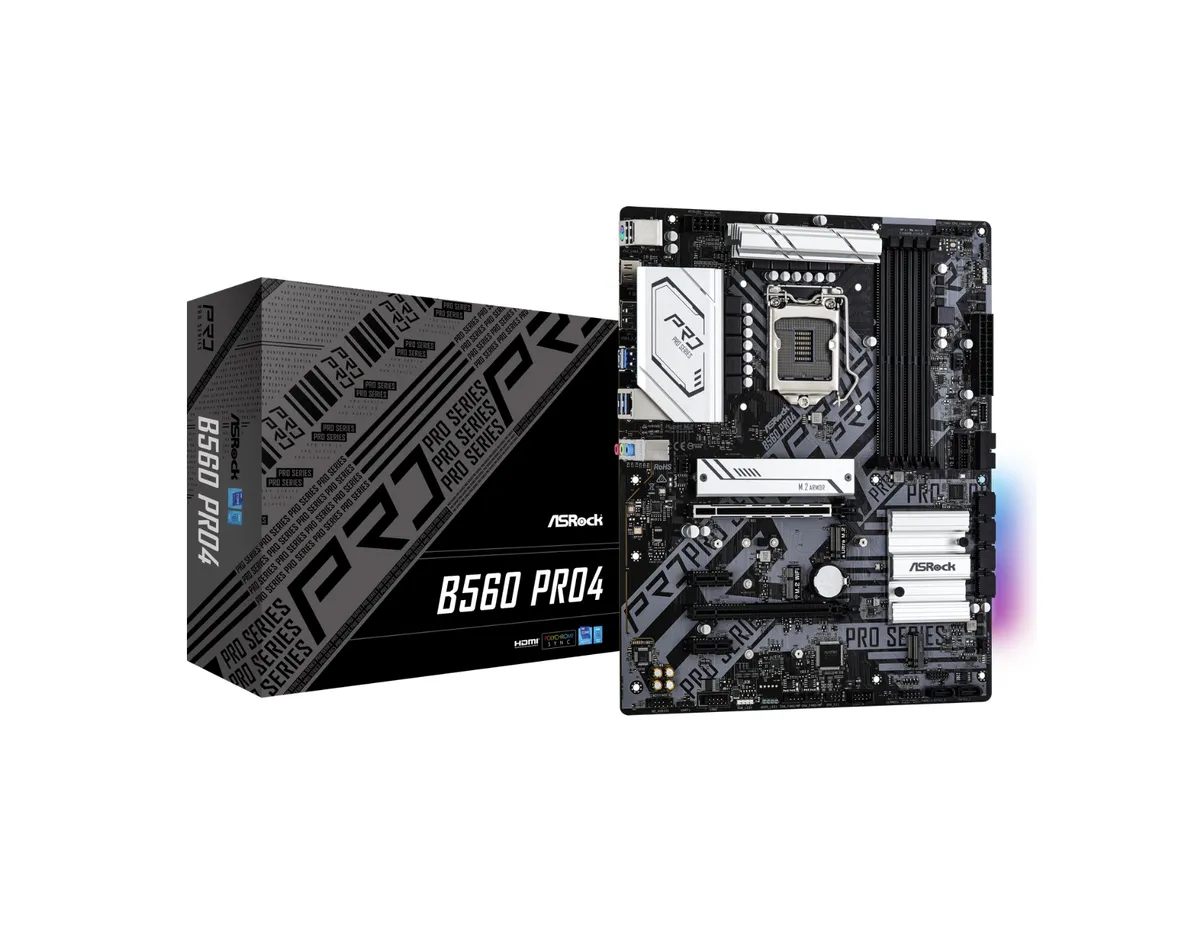

Abgabe wie auf den Bildern zu sehen, in neuwertigen Zustand inkl. OVP aber ohne I/O Shield!

*NICHT GETESTET, OHNE GARANTIE*

Produktinfo

Einzigartige Features

• ASRock Super Alloy
• - Premium 50A Power Choke
• - Sapphire Black PCB
• - High Density Glass Fabric PCB
• ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
• ASRock Steel Slot
• ASRock Full Coverage M.2 Heatsink
• ASRock Hyper M.2 (PCIe Gen4x4)
• ASRock POST Status Checker (PSC)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop

CPU

• - Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
• - Digi Power design
• - 8 Power Phase design
• - Supports Intel Turbo Boost Max 3.0 Technology

Chipsatz

• - Intel B560

Arbeitsspeicher

• - Dual Channel DDR4 Memory Technology
• - 4 x DDR4 DIMM Slots
• - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
• - 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*
• - Supports ECC UDIMM memory modules (operate in non-ECC mode)
• - Max. capacity of system memory: 128GB**
• - Supports Intel Extreme Speicherprofile (XMP) 2.0
• *11th Gen Intel Core (i9/i7/i5) support DDR4 3200 natively; Core (i3), Pentium and Celeron support DDR4 2666 natively.
• 10th Gen Intel Core (i9/i7) support DDR4 2933 natively; Core (i5/i3), Pentium and Celeron support DDR4 2666 natively.

BIOS

• - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• - ACPI 6.0 Compliant wake up events
• - SMBIOS 2.7 Support
• - CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST, VCCSA Voltage Multi-adjustment

Grafik

• - 11th Gen Intel Core Processors support Intel Xe Graphik-Architektur (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
• - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
• - Supports HDMI 2.0 with max. Auflösung up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel Core Processors
• - Supports HDMI 1.4 with max. Auflösung up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel Core Processors
• - Supports DisplayPort 1.4 with max. Auflösung up to 4K x 2K (4096x2304) @ 60Hz
• - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
• - Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel Core Processors)
• *Intel UHD Graphics Built-in Visuals und die VGA-Ausgänge können nur bei der Verwendung von CPUs mit integrierter GPU-Einheit genutzt werden.
• Die Grafikspezifikationen können je nach CPU-Typ variieren.

Audio

• - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Supports Surge Protection
• - Nahimic Audio

LAN

• - Gigabit LAN 10/100/1000 Mb/s
• - Giga PHY Intel I219V
• - Supports Wake-On-LAN
• - Supports Lightning/ESD Protection
• - Supports Energy Efficient Ethernet 802.3az
• - Supports PXE

Steckplätze

• 11th Gen Intel Core Processors
• - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3))*
• 10th Gen Intel Core Processors
• - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3))*
• - 2 x PCI Express 3.0 x1 Slots
• - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
• *Unterstützt NVMe-SSD als Boot-Festplatte

Speicherplatz

• - 6 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
• - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only)**
• - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
• - 1 x M.2 Socket (M2_3), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
• *If M2_3 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
• **Supports Intel Optane Technology (M2_2)
• Unterstützt NVMe-SSD als Boot-Festplatte
• Supports ASRock U.2 Kit

Anschlüsse

• - 1 x COM Port Header
• - 1 x SPI TPM Header
• - 1 x Chassis Intrusion and Speaker Header
• - 2 x RGB LED Headers*
• - 2 x Addressable LED Headers**
• - 1 x CPU Fan Connector (4-pin)***
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector
• - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
• - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
• *Support in total up to 12V/3A, 36W LED Strip
• **Support in total up to 5V/3A, 15W LED Strip
• ***Der CPU-Lüfteranschluss unterstützt CPU-Lüfter mit einer Leistung von maximal 1 Ampere (12 Watt).
• ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
• *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
• CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.

Blende

• - 3 x Antennenmontagepunkte
• - 1 x PS/2 Mouse/Keyboard Port
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• - 2 x USB 2.0 Ports (Supports ESD Protection)
• - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• - HD Audio Jacks: Line in / Front Speaker / Microphone

Hardware Überwachung

• - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• - CASE OPEN detection
• - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, VCCIN AUX, VCCSA, VCCPLL, VCCIO

Formfaktor

• - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• - Solid Capacitor design

Betriebssystem

• - Microsoft Windows 10 64-bit / 11 64-bit

-

Privatverkauf, keine Garantie oder Gewährleistung
