Premium 16-Input 2/2-Bus Mixer with XENYX Mic Preamps, British EQ, 24-Bit Multi-FX Processor and USB/Audio Interface

Product Features

Show less

• Premium ultra low-noise, high headroom analog mixer
• 4 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
• Neo-classic "British" 3-band EQs with semi-parametric mid band for warm and musical sound
• Studio-grade 24-bit stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
• USB/Audio Interface included to connect directly to your computer. Free audio recording and editing software
• Channel inserts on each mono channel for flexible connection of outboard equipment
• 2 aux sends per channel: 1 pre/post fader switchable for monitoring/FX applications, 1 post fader (for internal FX or as external send)
• Peak LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
• 2 subgroups with separate outputs for added routing flexibility; 2 multi-functional stereo aux returns with flexible routing
• Main mix outputs with 1/4" jack and gold-plated XLR connectors, separate control room, headphones and stereo tape outputs
• Control room/phones outputs with multi-input source matrix; Tape inputs assignable to main mix or control room/phones outputs
• Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
• Internal autorange power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• Rack mount brackets included for ultimate flexibility
• High-quality components and exceptionally rugged construction ensure long life

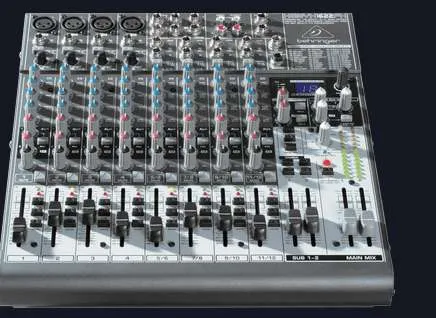

XENYX 1622FX

The 16-input XENYX 1622FX is an analog mixer that brings together old-school feel, onboard digital effects the endless possibilities of digital recording.

Superior Mic Preamps

The BEHRINGER XENYX 1622FX represents a significant milestone in the development of mixer technology. Equipped with our premium XENYX mic preamps, it can easily hold its own against expensive stand-alone mic pres, both in terms of sound quality and available headroom. XENYX preamps offer a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz.

These preamps provide such transparent, crystal-clear performance you just might think someone upgraded your mics. And thanks to available onboard phantom power, you can deploy studio-quality condenser mics — pretty cool for drum overheads and tracking vocals in the studio.

Sublimely Musical “British” EQ

The British consoles of the 1960s and 70s changed the sound of rock and roll — without them, the “British Invasion” might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The EQ on our new XENYX Series mixers is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when pushed to extreme settings, these equalizers exhibit superb audio quality.

All channel strips on the 1622FX feature HIGH and LOW filters of the shelving variety, with cut-off frequencies of 12 kHz and 80 Hz respectively. Mono channel midrange EQ is handled by a semi-parametric filter with a Q of one octave, tunable from 100 Hz to 8 kHz—simply dial up the FREQ and the amount you wish to cut or boost. Due to the nature of their typically complex signal content, we opted to give the stereo channels additional HIGH- and LOW-MID controls, so you can have a boost and a cut at two distinct frequencies o the critical midrange zone.
