Abgabe wie auf den Bildern zu sehen, in neuwertigen Zustand inkl. I/O Shield, ohne OVP

*NICHT GETESTET, OHNE GARANTIE*

Weitere Bilder folgen!

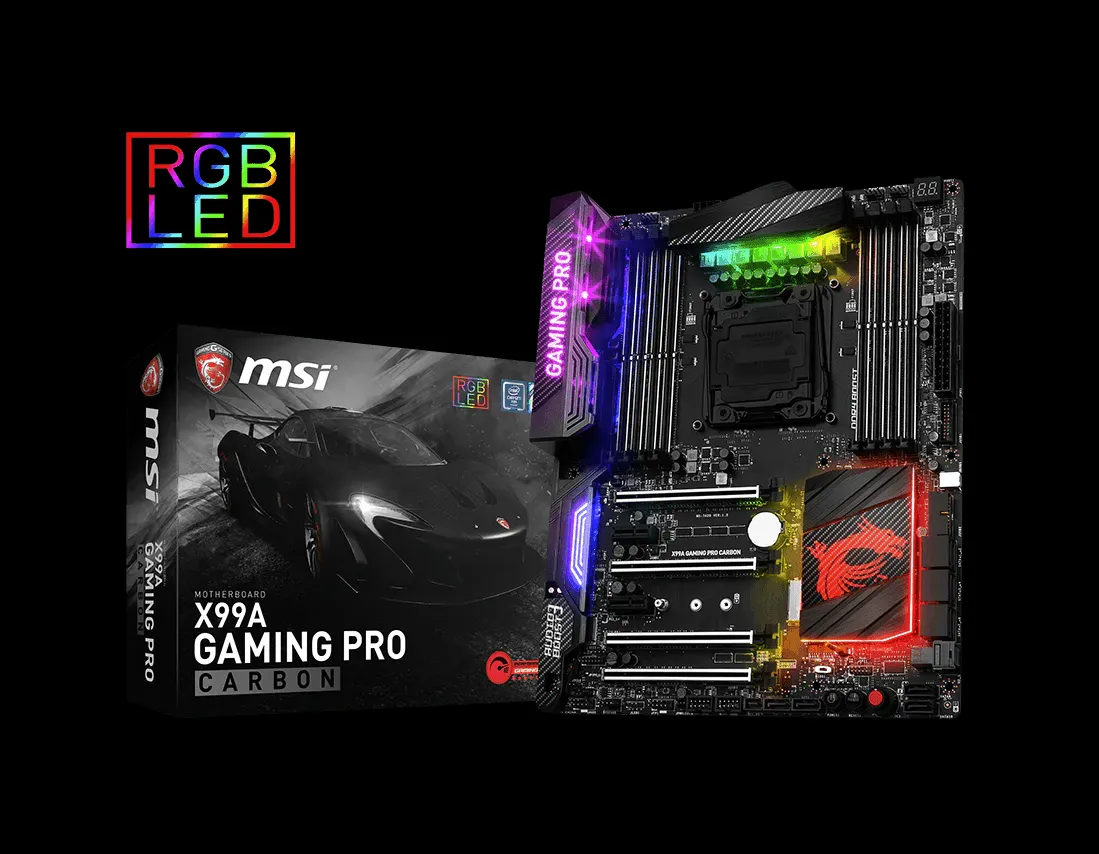

Produktinfo

CPU

• Supports New Intel Core i7 Processor Extreme Edition for LGA2011-3 Socket

* This function will be supported depend on the CPU.

Chipset

• Intel X99 Chipset

Main Memory

• 8 x DDR4 memory slots, support up to 128GB*

- Supports DDR4 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2400/ 2200(OC)/ 2133 MHz

• Quad channel memory architecture

• Supports Intel Extreme Memory Profile (XMP)

* For the latest information about memory, please visit

Slots

• 4x PCIe 3.0 x16 slots*

- Support x16/ x0/ x0/ x0, x16/ x16/ x0/ x0, x16/ x16/ x0/ x8, x8/ x16/ x8/ x8 with the CPU that supports 40 PCIe lanes.

- Support x16/ x0/ x0/ x0, x16/ x8/ x0/ x0, x8/ x8/ x8/ x0, x8/ x8/ x8/ x4 with the CPU that supports 28 PCIe lanes.

• 2 x PCIe 2.0 x1 slots

* PCI_E6 slot shares the bandwidth with U.2 port and M.2 PCIe 3.0 x4. Please refer to page 32 for PCIe 3.0 bandwidth table.

Multi-GPU

• Supports 3-Way AMD CrossFire Technology

• Supports 3-Way NVIDIA SLI Technology

Storage

• Intel X99 Chipset

• 10 x SATA 6Gb/s ports (2 ports from SATAe port)

- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10

- SATA7~10 only support IDE mode and AHCI mode

• 1 x M.2 slot (Key M)*

- Supports up to PCIe 3.0 x4 and SATA 6Gb/s

- Supports 2242/ 2260/ 2280 storage devices

• 1 x U.2 port */ **

- Supports PCIe 3.0 x4 NVMe storage

• 1 x SATAe port* (compatible with 2 SATA ports)

- Supports up to PCIe 2.0x2

• Supports Intel Smart Response Technology***

* M.2 slot (PCIe 3.0 x4) and U.2 share the same bandwidth. Please refer to page 38 for U.2/ M.2/ SATAe & SATA combination table.

** The U.2 port will be unavailable when installing the PCIe device in PCI_E6 slot.

*** This function will be supported depend on the CPU.

USB

• ASMedia ASM1142 Chipset

- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port on the back panel

- 1 x USB 3.1 Gen2 (Super Speed USB 10Gbps) Type-C port on the back panel

• Intel X99 Chipset

- 5 x USB 3.1 Gen1 (SuperSpeed USB) ports (1 internal Type-C port on the board, 4 ports available through the internal USB connectors)

- 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

• VIA VL805 Chipset

- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel

Audio

• Realtek ALC1150 Codec

- 7.1-Channel High Definition Audio

- Supports S/PDIF output

LAN

• 1 x Intel I218-V Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 10 x SATA 6Gb/s connectors

- 1 x SATA Express connector

- 1 x M.2 slot

- 1 x U.2 port

- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)

- 1 x USB 3.1 Gen1 Type-C port

- 1 x 4-pin CPU fan connector

- 1 x 4-pin Water Pump connector

- 3 x 4-pin system fan connectors

- 1 x Front panel audio connector

- 2 x Front panel connectors

- 1 x TPM module connector

- 1 x Chassis Intrusion connector

- 1 x Clear CMOS jumper

- 1 x Slow mode booting jumper

- 1 x GAME BOOST knob

- 1 x Power button

- 1 x Reset button

- 1 x Multi-BIOS switch

- 1 x RGB LED connector

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port

- 4 x USB 2.0 ports

- 1 x Clear CMOS button

- 4 x USB 3.1 Gen1 ports

- 1 x LAN (RJ45) port

- 1 x USB 3.1 Gen2 port

- 1 x USB 3.1 Gen2 Type-C port

- 1 x Optical S/PDIF OUT connector

- 5 x OFC audio jacks

Dimension

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

• ATX Form Factor

Mounting

• 9 mounting holes

-

Privatverkauf, keine Garantie oder Gewährleistung
