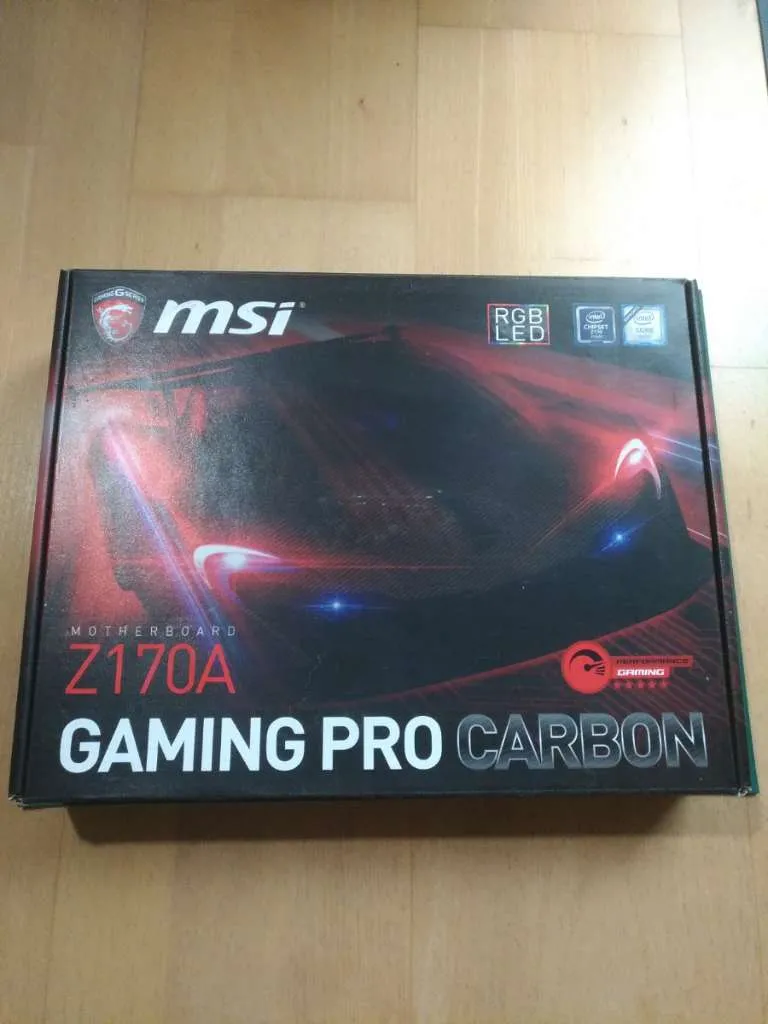

MSI Z170A Gaming Pro Carbon + CPU Intel + Ram 4 GB bundle .

CPU 2 × Intel(R) Celeron(R) CPU G3900 @ 2.80GHz

Bios wurde Upgedatet (ist auf neusten Stand 01/2025), das ganze wurde getestet mit Win 10 - 64 bit, funktioniert 100 %

Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151

Intel Z170 Chipset

4 x DDR4 memory slots, support up to 64GB

- Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz*

• Dual channel memory architecture

• Supports ECC, un-buffered memory

- ECC UDIMM memory (non-ECC mode)

• Supports Intel Extreme Memory Profile (XMP)

3 x PCIe 3.0 x16 slots (support x16/x0/x4 or x8/x8/x4 modes)

• 4 x PCIe 3.0 x1 slots

Onboard Graphics

• 1 x HDMI port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz

• Support for HDMI 1.4 Version

• 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz

Supports 3-Way AMD CrossFire Technology

• Supports 2-Way NVIDIA SLI Technology

Intel Z170 Chipset

• 6 x SATA 6Gb/s ports* (2 ports reserved for SATA Express port)

• 1 x M.2 slot*

- Supports PCIe 3.0 x 4 and SATA 6Gb/s standards,4.2cm/ 6cm/ 8cm length M.2 SSD cards

- Supports PCIe 3.0 x 4 NVMe Mini-SAS SSD with Turbo U.2 Host Card**

• 1 x SATAe port (PCIe 3.0 x2)*/ ***

• Supports Intel Smart Response Technology for Intel Core processors

ASMedia ASM1142 Chipset

- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports on the back panel

• Intel Z170 Chipset

- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 4 ports available through the internal USB 3.1 Gen1 connectors)

- 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

Realtek ALC1150 Codec

- 7.1-Channel High Definition Audio

- Supports S/PDIF output

1 x Intel I219-V Gigabit LAN controller

1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 6 x SATA 6Gb/s connectors (2 ports reserved for SATA Express port)

- 1 x SATAe connector

- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)

- 2 x 4-pin CPU fan connectors

- 3 x 4-pin system fan connectors

- 1 x Front panel audio connector

- 2 x Front panel connectors

- 1 x TPM module connector

- 1 x Chassis Intrusion connector

- 1 x Clear CMOS jumper

- 1 x TBT connector

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse port

- 4 x USB 2.0 ports

- 1 x DVI-D port

- 2 x USB 3.1 Gen1 ports

- 1 x USB 3.1 Gen2 port

- 1 x USB 3.1 Gen2 Type-C port

- 1 x HDMI port

- 1 x LAN (RJ45) port

- 1 x Optical S/PDIF OUT connector

- 5 x OFC audio jacks
