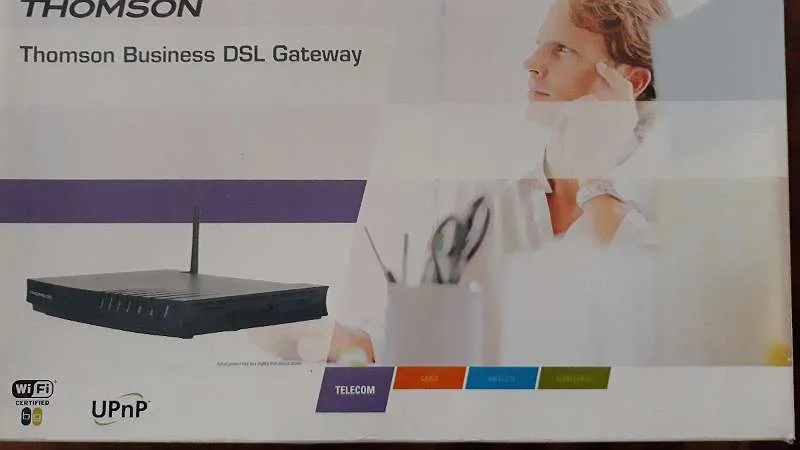

Biete voll funktionstüchtiges SHDSL Modem Thomson TG628s, in originaler Verpackung und Netzteil, es war als Ersatzgerät vorgesehen und wurde nur selten verwendet und wird aufgrund Providerwechsel nicht mehr benötigt.
Technische Daten siehe nachfolgenden Text u. Bilder

Interfaces LAN:   4x Ethernet (RJ45) ports (10/100BaseT) with auto MDI/MDI-X
                         Serial port
                         DSL line RJ11 for ADSL-ADSL2-ADSL2+/POTS or
                         ADSL-ADSL2-ADSL2+/ISDN

Interfaces WAN: DSL (RJ11) for ADSL, ADSL2, Re-ADSL (annex L), ADSL2+
                        and enhanced upstream ADSL2+ (annex M)
                        EFM mode compliantto IEEE 802.3, G.998.2: using 64/65
                        framing and allowing differing syncrates between the four pairs
                        with a maximum ratio of 1:4
                        ATM mode compliant to G.991.2
                        The 8-wire SHDSL interface can be configured either in
                        CPE mode (connecting to a DSLAM) or in CO mode,
                        (two modems can be put back-toback on blank copper),
                        peeds ranging from 192 Kbps (32kbps on ATM) up to 5.7 Mbps
                        per pair providing max 22.8 Mbps symmetrical
                        x DSL line RJ14 (pin 3&4 for first pair, pin 2&5 for second pair)
                        for SHDSL and SHDSL.bis
                        The 8-wire SHDSL can be configured as:
                        - one 8-wire interface: either in CPE mode (connecting to a
                        DSLAM) or in CO mode (two modems can be put back-to-back
                        on blank copper, up to 22.8 Mbps)
                        - two separate 4-wire interfaces: either both in CPE mode
                        (can even connect to two different DSLAMs, for back-up
                        purposes and load balancing), both in CO mode (to connect to
                        two remote CPEs) or one in CO and one in CPE mode
                        (for add/drop purposes in linear network and as repeater with
                       traffic insertion functionality).
                       Both 4-wire interfaces can have be
                       both either working in EFM or ATM mode
Serial interface
DIN type Dimensions 3.5 x 24 x 18.5 cm / 1.38 x 9.39 x 7.29 in. (h x w x d)
Temperature                     0 to 40 degrees Celsius (32 to 105 Fahrenheit)
Humidity                           20% to 80%
AC Voltage                       100-120 V AC / 220-240 V AC
Frequency                        50-60 Hz

Services:
Bridging                          Full VLAN aware bridging (802.q / p)
                                     Port-based VLAN tagging
                                      Isolated or shared self-learning bridge table
                                      Configurable VLAN priority re-mapping
                                      Single- and double VLAN-tagged IP interfaces
                                      Mixed bridging and routing on a single PVC with full                     QoS handling
                                      Support of separate management VLAN
                                      Flexiport

IP Routing                       Multi-port router (up to 8 PVCs)
                                      DiffServ IP QoS
                                      TCP-aware QoS enhancement
                                      IGMP Proxy
 DHCP                             Server and client
                                      Spoofing

Stateful firewall               Intrusion detection
                                      Denial-of-Service attack detection and prevention
                                      DMZ

Content filtering               URL classification and filtering according to 59                            categories, based on look-up in a database                                accessible on the Internet

WAN protocol model        Routed PPPoE/PPPoA
                                     Relayed PPPoA and DHCP-to-PPP spoofing
                                    Bridged Ethernet/Routed Ethernet
                                     Routed IPoA and IpoE
                                     NAT/PAT, Multi-NAT, Transparent NAT

BOOTP client

BGPv4, RIPv1/v2

Preis: EUR 9,-

Kontakt nur Email oder SMS auf
0-6-8-1/8-1-3-0-9-9-3-1

Abholung oder Versand nach Absprache möglich, auch Übergabe in Wien nach Absprache möglich!
(Kosten versicherter Versand in Österreich € 6,50)

Haustier und Rauchfreier Haushalt

Privatverkauf keine Garantie, Gewährleistung oder Rücknahme!
