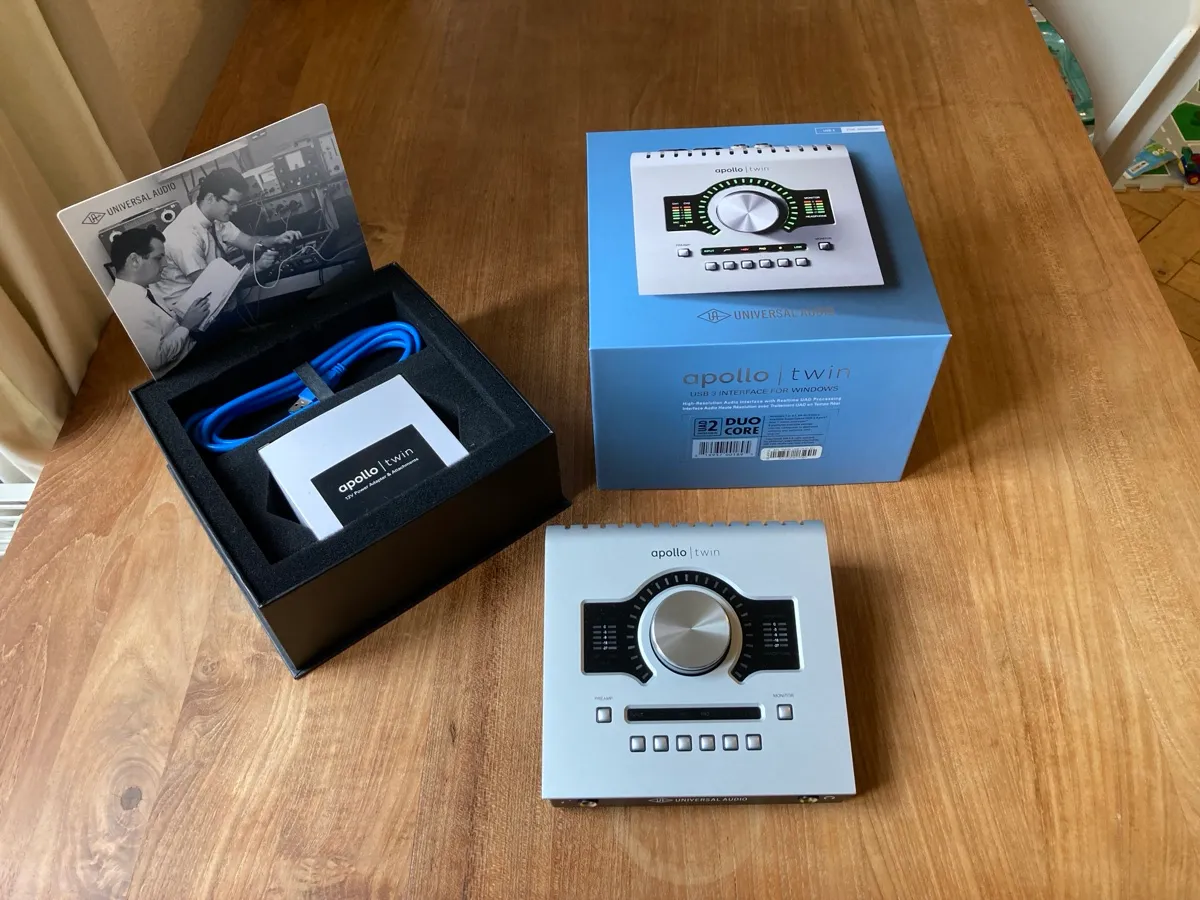

Universal Audio Apollo Twin: 2-Kanal Audio-Interface für Windows (mit Originalverpackung) mit DSP

War bis vor einem Monat noch im Einsatz und funktioniert einwandfrei.
Verwendung ausschließlich im Homestudio.
Verkauf aufgrund von Betriebssystemwechsel und Upgrade auf ein Interface mit mehr Kanälen.

Zustand ist sehr gut - lediglich das Symbol des High-Z Instrumenteneingang an der Vorderseite ist ein wenig abgenutzt (siehe Foto).

Privatverkauf, Test und Abholung in 1130 Wien auch gerne möglich.

TECHNISCHE DATEN

SYSTEM
I/O Complement
Microphone Inputs: Two
Analog Line Inputs: Two
Hi-Impedance (Hi-Z) Instrument Inputs: One
Analog Line Outputs: Two
Analog Monitor Outputs: Two (one stereo pair)
Headphone Outputs: One stereo
Digital Input Port (TOSLINK optical): One (ADAT or S/PDIF, selectable)
USB 3 Port: One
A/D – D/A Conversion
Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample: 24
Simultaneous A/D conversion: Two channels
Simultaneous D/A conversion: Six channels
Analog Round-Trip Latency: 1.1 milliseconds @ 96 kHz sample rate
Analog Round-Trip Latency with up to four serial
UAD Powered Plug-Ins via Console application:
1.1 milliseconds @ 96 kHz sample rate

Frequency Response 20 Hz – 20 kHz, ±0.1 dB
Line Inputs 1 & 2
Connector Type ¼” Female TRS Balanced (Combo XLR/TRS)
Dynamic Range 117.5 dB (A–weighting)
Signal-to-Noise Ratio 117.5 dB (A–weighting)
Total Harmonic Distortion + Noise –108 dBFS
Input Impedance 10K Ohms
Gain Range +10 dB to +65 dB
Reference Level +4 dBu
Maximum Input Level +20.2 dBu
Microphone Inputs 1 & 2
Connector Type XLR Female, pin 2 positive (Combo XLR/TRS)
Phantom Power +48V (switchable per mic input)
Dynamic Range 118 dB (A–weighting)
Signal-to-Noise Ratio 118 dB (A–weighting)
Total Harmonic Distortion + Noise –110 dBFS
Equivalent Input Noise –127 dBu
Common-Mode Rejection Ratio (CMRR) Greater than 70 dB (10’ cable)
Default Input Impedance 5.4K Ohms (variable via Unison plug-ins)
Gain Range +10 dB to +65 dB
Pad Attenuation (switchable per input) 20 dB (variable via Unison plug-ins)
Maximum Input Level 26 dBu (minimum gain, pad engaged)

Hi-Z INPUT
Connector Type Female ¼” TS Unbalanced
Dynamic Range 117 dB (A–weighting)
Signal-to-Noise Ratio 117 dB (A–weighting)
Total Harmonic Distortion + Noise –101 dBFS
Input Impedance 1M Ohms (variable via Unison plug-ins)
Gain Range +10 dB to +65 dB
Maximum Input Level +12 dBu

LINE OUTPUTS 3 & 4
Frequency Response 20 Hz – 20 kHz, ±0.1 dB
Connector Type ¼” Female TRS Balanced
Dynamic Range 118 dB (A–weighting)
Signal-to-Noise Ratio 118 dB (A–weighting)
Total Harmonic Distortion + Noise –107 dBFS
Stereo Level Balance ±0.05 dB
Output Impedance 600 Ohms
Maximum Output Level 20.2 dBu
Monitor Outputs 1 & 2
Connector Type ¼” Female TRS Balanced
Dynamic Range 115 dB (A–weighting)
Signal-to-Noise Ratio 115 dB (A–weighting)
Total Harmonic Distortion + Noise –105 dBFS
Stereo Level Balance ±0.05 dB
Output Impedance 600 Ohms
Maximum Output Level +20.2 dBu
Operating Reference Level +14 dBu, +20 dBu (selectable)
Stereo Headphones Output
Connector Type ¼” Female TRS Stereo
Dynamic Range 113 dB (A–weighting)
Signal-to-Noise Ratio 113 dB (A–weighting)
Total Harmonic Distortion + Noise –101 dBFS
Maximum Output Power 80 milliwatts into 600 ohm load

DIGITAL INPUT
S/PDIF
Connector Type Optical TOSLINK JIS F05 (shared with ADAT)
Format IEC958
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96
S/PDIF Input Channels Two (Stereo L/R)

ADAT
Connector Type Optical TOSLINK JIS F05 (shared with S/PDIF)
Format ADAT Digital Lightpipe with S/MUX
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
ADAT Input Channels @ 44.1 kHz, 48 kHz 1 – 8
ADAT Input Channels @ 88.2 kHz, 96 kHz 1 – 4 (S/MUX)
ADAT Input Channels @ 176.4 kHz, 192 kHz 1 – 2 (S/MUX)
Clock Synchronization Sources
Internal, S/PDIF, ADAT (digital clock sync source conditional per selected digital input type)

ELECTRICAL
Power Supply External AC to DC
AC Connector Type Changeable blades (UL, VDE, UK, SSA, CCC)
AC Requirements 100V – 240V AC, 50 – 60 Hz
DC Connector Type Male plug, 2.1 mm x 5.5 mm, center positive
DC Requirements 12 VDC, ±5%
Maximum Power Consumption 12 Watts

ENVIRONMENTAL
Operating Temperature Range 32º to 95º Fahrenheit (0º to 35º Celsius)
Storage Temperature Range -40º to 176º Fahrenheit (-40° to 80º Celsius)
Operating Humidity Range 20% to 80%

MECHANICAL
Dimensions
Width 6.31”
Height 2.60”
Depth, Chassis Only 5.86”
Depth, Including Knob & Jack Protrusions 6.20”
Shipping Box (Length x Width x Height) 8” x 8” x 5.5” (20.32cm x 20.32cm x 13.97cm)
Weight
Shipping Weight (with box & accessories) 3.85 pounds
Weight (bare unit) 2.35 pounds
Package Contents
Apollo Twin USB DUO Unit
External Power Supply with (4) changeable AC connectors supporting USA, Europe, UK, Australia, China
USB 3 SuperSpeed Cable
Getting Started URL Card
